Azure landing zone map of a mining group

Views in this map

1. 1

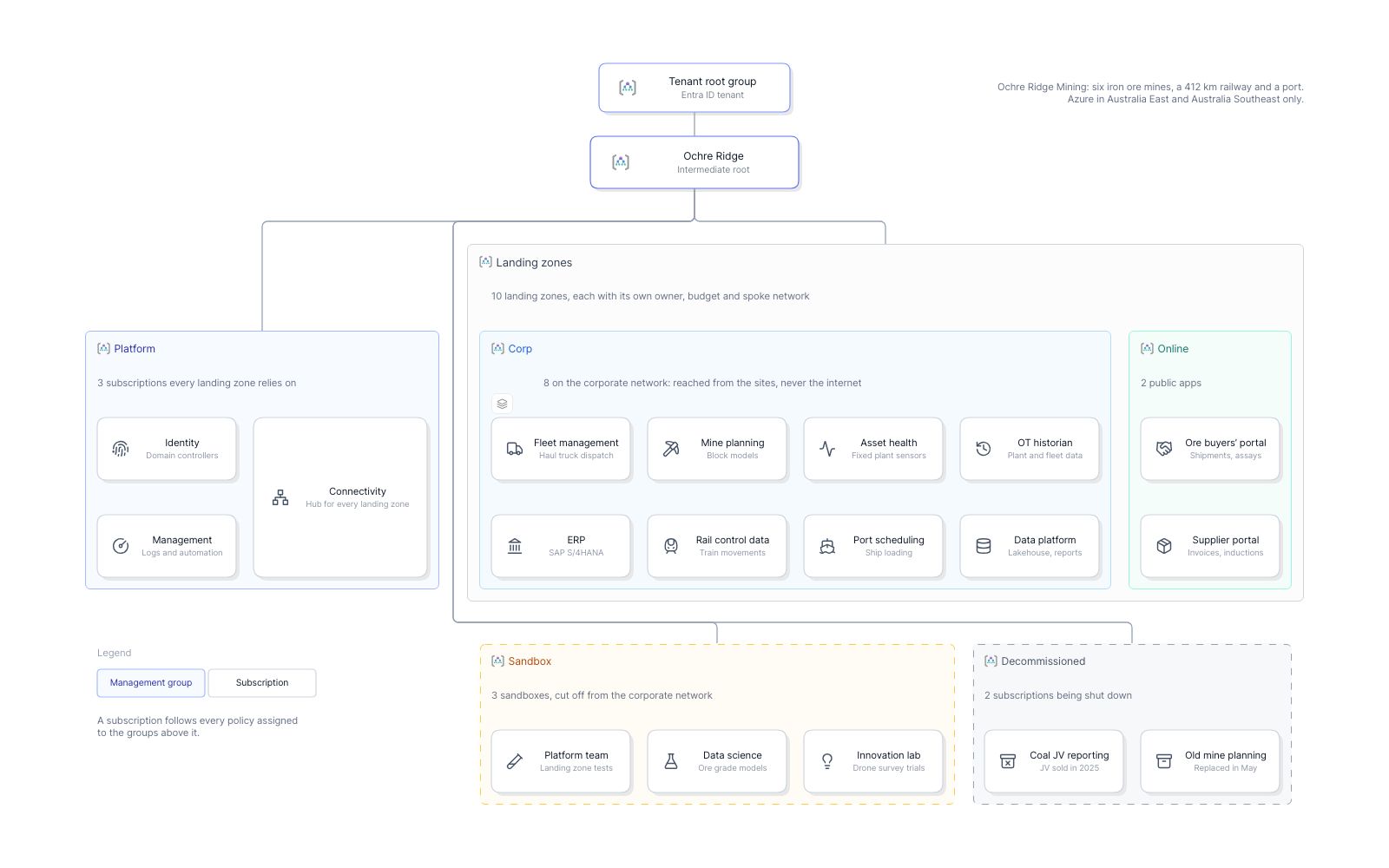

   HierarchyThe management-group tree and the 18 subscriptions under it, with counts.
2. 2
   GuardrailsTen policies, each pinned where it is assigned. One exemption has run out.
3. 3
   Owners and costWho owns each subscription and its monthly cost: A$431,300. Three have no owner.
4. 4
   NetworkEvery landing zone is a spoke of the hub, but fleet peers straight to the historian.
5. 5
   Fleet managementEight resource groups: four by Terraform, two by legacy Bicep, two made by hand.

Hierarchy ‹ › Guardrails ‹ › Owners and cost ‹ › Network ▸ Fleet management

Flows to play

• ▷
  An exemption runs outHow Corp’s ban on public IPs reaches the OT historian, and what its expired exemption means. In the Guardrails view.
• ▷
  Truck data skips the firewallHaul truck data comes in through the hub, then reaches the historian over a peering the firewall never sees. In the Network view.
• ▷
  Three ways inHow fleet management’s resource groups were built, from the 2023 pilot to the Terraform pipeline. In the Fleet management view.

The model behind it

59 records of 8 types. Every box on the map is one of them, so the filters and the record panel read the same data.

• Subscriptions 18
• Policies 10
• Management groups 8
• Resource groups 8
• Network parts 5
• Sites 4
• Exemptions 3
• Pipelines 3

Filters

Business unit and Deployed by: pick a value and everything else fades.
